Kawasaki Ninja Owners Manual: Spark Plugs

Kawasaki Ninja Owners Manual / Maintenance and adjustment / Spark Plugs

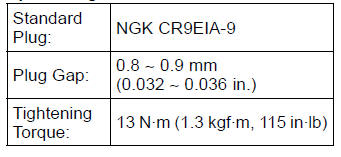

The standard spark plug is shown in the table. The spark plugs should be replaced in accordance with the Periodic Maintenance Chart.

Spark plug removal should be done only by a competent mechanic following the instructions in the Service Manual.

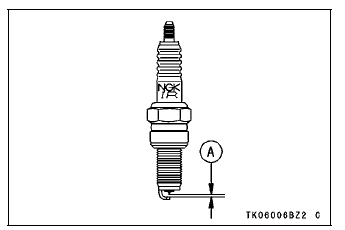

Spark Plug

A. Plug Gap
