Air Intake Duct Disassembly (US, CA and CAL Models)


Air Intake Duct Installation
Check that the pad [A] is in place on the air intake duct. Apply a non-permanent locking agent to the threads of the air intake duct mounting bolts, and tighten them. Run the lead correctly ( ...

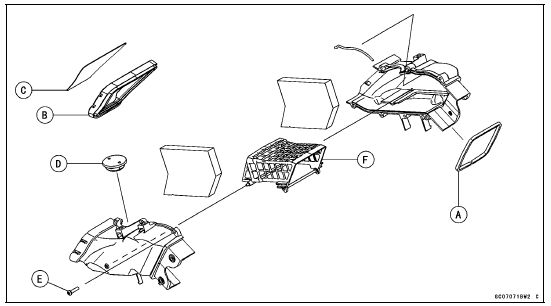

Air Intake Duct Assembly (US, CA and CAL Models)
Install the dampers [A] and seal [B] as shown in the figure. Fit the holder [C] to the air intake ducts [D]. Projections [E] and Holes [F] Grooves [G] and Ribs [H] Tighten: Torque - Ai ...
