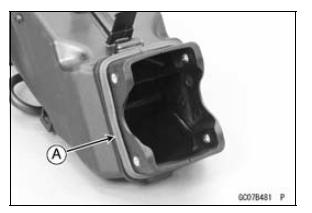

Air Intake Duct Installation


Air Intake Duct Removal
Remove: Upper Fairing Assembly (see Upper Fairing Assembly Removal in the Frame chapter) Meter Bracket (see Meter Unit Removal/Installation in the Electrical System chapter) Immobilizer A ...

Air Intake Duct Disassembly (US, CA and CAL Models)
Remove: Pad [A] Seal [B] and Screen [C] Plug [D] (Turn 90В°) Screws [E] Holder [F] ...
