Kawasaki Ninja Service Manual: Air Intake Solenoid Valve Unit Test

Kawasaki Ninja Service Manual / Electrical System / Air Intake Solenoid Valve / Air Intake Solenoid Valve Unit Test

Remove the air intake solenoid valve (see Air Intake Solenoid Valve Removal in the Fuel System (DFI) chapter).

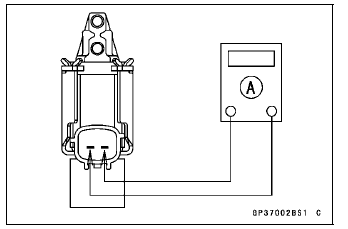

Set the hand tester [A] to the × 1 Ω range and connect it to the air intake solenoid valve terminals as shown in the figure.

Special Tool - Hand Tester: 57001-1394

Air Intake Solenoid Valve Resistance Standard: 22 26 Ω at 20°C (68°F)

If the resistance reading is out of the specified value, replace it with a new one.

Air Intake Solenoid Valve Unit Test

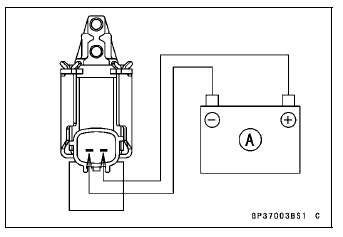

Connect the 12 V battery [A] to the air intake solenoid valve terminals as shown in the figure.

Air Intake Solenoid Valve Unit Test

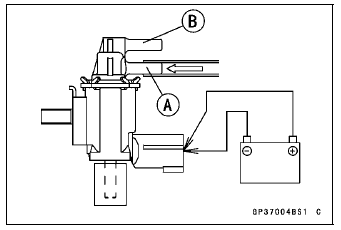

Blow the air to the intake air duct [A], and make sure does not flow the blown air from the outlet air duct [B].

Air Intake Solenoid Valve Unit Test

Disconnect the 12 V battery.

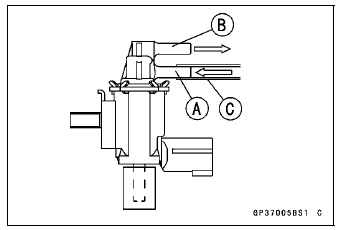

Blow the air to the intake air duct [A] again, and make sure flow the blown air from the outlet air duct [B].

If the air intake solenoid valve does not operate as described, replace it with a new one.

NOTE

To check air flow through the air intake solenoid valve, just blow through the air intake solenoid valve hose (intake side) [C].

Air Intake Solenoid Valve Unit Test

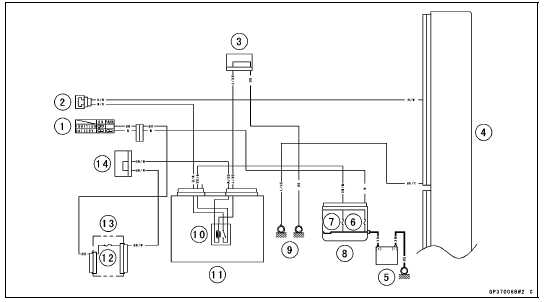

Air Intake Solenoid Valve Circuit

Air Intake Solenoid Valve Circuit

1. Ignition Switch

2. Air Intake Solenoid Valve

3. Joint Connector A

4. ECU

5. Battery

6. Main Fuse 30 A

7. ECU Fuse 15 A

8. Starter Relay

9. Frame Grounds

10. ECU Main Relay

11. Relay Box

12. Ignition Fuse 15 A

13. Fuse Box 1

14. Joint Connector F

Air Intake Solenoid Valve Operation Test

Start the engine and run it at idle speed. Check the air intake valve [A] as follows. When the engine is running, the air intake valve is lifting up. If the valve does not operate properly, ...
