Kawasaki Ninja Service Manual: Clutch Spring Free Length Measurement

Kawasaki Ninja Service Manual / Clutch / Clutch / Clutch Spring Free Length Measurement

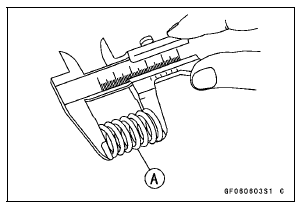

If any spring is shorter than the service limit, it must be replaced.

Clutch Spring Free Length

Standard: 43.5 mm (1.71 in.)

Service Limit: 42.1 mm (1.66 in.)

Clutch Spring Free Length Measurement
