Kawasaki Ninja Service Manual: Dust Seal Inspection

Kawasaki Ninja Service Manual / Suspension / Front Fork / Dust Seal Inspection

Replace it if necessary.

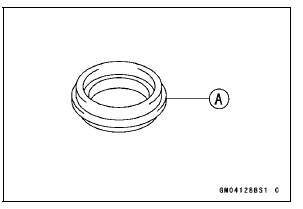

Dust Seal Inspection


Inner Tube Inspection
Visually inspect the inner tube [A]. If there is any damage, replace the inner tube. Since damage to the inner tube damages the oil seal, replace the oil seal whenever the inner tube is replac ...

Spring Tension Inspection
Since a spring becomes shorter as it weakens, check its free length [A] to determine its condition. If the spring of either fork leg is shorter than the service limit, it must be replaced. If ...
