Kawasaki Ninja Service Manual: Steering Damper Removal

Kawasaki Ninja Service Manual / Steering / Steering Damper / Steering Damper Removal

ZX1000JC/KC

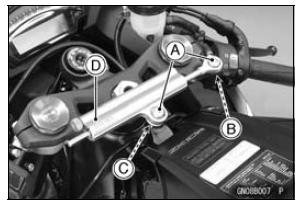

Remove: Steering Damper Mounting Bolts (TORX Bolts) [A] Washer [B] Washer and Collar [C] Steering Damper [D]

Steering Damper Removal

ZX1000JD/KD

Remove: Clamp [A] Connector [B] (Disconnect) Steering Damper Mounting Bolts (TORX Bolts) [C] Washer [D] Washer and Collar [E] Electronic Steering Damper [F]

Steering Damper Removal

Damping Force Adjustment ( ZX1000JC/KC)

To adjust the damping force, turn the damping adjuster [A] until you feel a click. The standard adjuster setting is the 18th click from the 1st of the fully clockwise position. If the damping ...

Steering Damper Installation

Install the following parts as shown in the figure. Collar [A] Washer (t = 3.5 mm, 0.14 in.) [B] Steering Damper [C] ( ZX1000JC/KC) Electronic Steering Damper [D] (ZX1000JD/KD) Washe ...
