Kawasaki Ninja Service Manual: Subthrottle Sensor (Service Code 32)

Kawasaki Ninja Service Manual / Self-Diagnosis System / Subthrottle Sensor (Service Code 32)

The subthrottle sensor is a rotating variable resistor that change output voltage according to throttle operating. The ECU senses this voltage change and determines fuel injection quantity, and ignition timing according to engine rpm, and throttle opening.

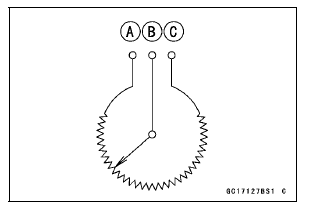

Input Terminal [A]: BL Output Terminal [B]: BL/W Ground Terminal [C]: BR/BK

Subthrottle Sensor (Service Code 32)


Vehicle-down Sensor Output Voltage Inspection
Remove the vehicle-down sensor. Connect the measuring adapter [A] to the vehicle-down sensor connectors as shown in the figure. Special Tool - Measuring Adapter: 57001-1700 Main Harness [B] ...

Subthrottle Sensor Removal/Adjustment
NOTICE Do not remove or adjust the subthrottle sensor [A] since it has been adjusted and set with precision at the factory. Never drop the throttle body assy especially on a hard surface. Such ...
