Kawasaki Ninja Service Manual: Vehicle-down Sensor Installation

Kawasaki Ninja Service Manual / Self-Diagnosis System / Vehicle-down Sensor (Service Code 31) / Vehicle-down Sensor Installation

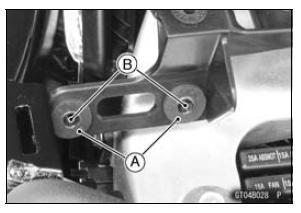

Be sure to install the rubber dampers [A] and collars [B] on the bracket.

Vehicle-down Sensor Installation

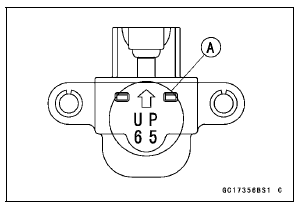

The UP mark [A] of the sensor should face upward.

WARNING

Incorrect installation of the vehicle-down sensor could cause sudden loss of engine power. The rider could lose balance during certain riding situations for an accident resulting in injury or death.

Ensure that the vehicle-down sensor is held in place by the sensor bracket.

Vehicle-down Sensor Installation

Vehicle-down Sensor Removal

NOTICE Never drop the vehicle-down sensor especially on a hard surface. Such a shock to the sensor can damage it. Remove: Rear Seat (see Rear Seat Removal in the Frame chapter) Upper Seat Co ...

Vehicle-down Sensor Input Voltage Inspection

NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. Disconnect the vehicle-down sensor connector and connect the measuring adapter [A] between these connectors as sh ...
