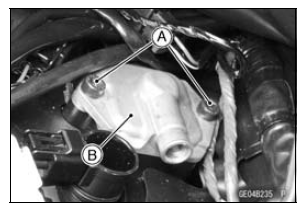

Air Suction Valve Removal

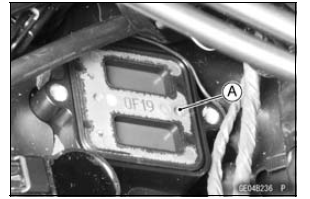

Air Suction Valve Removal


Clean Air System
...

Air Suction Valve Installation
Install the air suction valve so that opening [A] of the reed faces downward. Apply a non-permanent locking agent to the threads of the air suction valve cover bolts [A], and tighten ...
