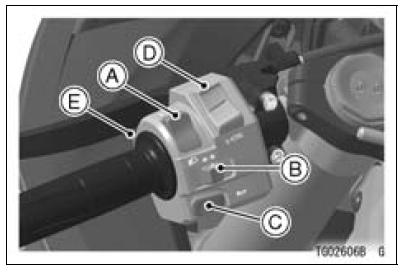

A. Dimmer Switch
B. Turn Signal Switch
C. Horn Button
D. Power/S-KTRC Button
E. LAP/Passing Button
E. LAP/Passing Button
Dimmer SwitchBrake Fluid Leak (Brake Hose and Pipe) Inspection
For KIBS equipped models, remove the fuel tank (see
Fuel Tank Removal in the Fuel System (DFI) chapter).
Apply the brake lever or pedal and inspect the brake fluid
leak from the brake hoses [A], pipes (KIBS equipped models)
[B] and fittings [C].
If the brake fluid leaked from any posit ...
Valve Installation
NOTICE
Do not lap the valve to the valve seat, using the
grinding compound. It will come off oxide film
treated surface of the valve.
Replace the oil seal with a new one.
Apply a thin coat of molybdenum disulfide grease to the
valve stem before valve installation.
Install the springs so ...
Air Intake Duct Assembly (US, CA and CAL Models)
Install the dampers [A] and seal [B] as shown in the figure.
Fit the holder [C] to the air intake ducts [D].
Projections [E] and Holes [F]
Grooves [G] and Ribs [H]
Tighten:
Torque - Air Intake Duct Assembly Screws [I]: 1.5 N·m (0.15
kgf·m, 13 in·lb)
Turn the plug [J] so that ...
