Kawasaki Ninja Service Manual: Engine Oil Change

Kawasaki Ninja Service Manual / Periodic Maintenance / Periodic Maintenance Procedures / Replacement Parts / Engine Oil Change

Situate the motorcycle so that it is vertical after warming up the engine.

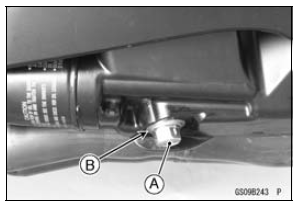

Remove the engine oil drain bolt [A] to drain the oil.

The oil in the oil filter can be drained by removing the filter (see Oil Filter Replacement).

Replace the drain bolt gasket [B] with a new one.
Tighten the drain bolt.

Torque - Engine Oil Drain Bolt: 29 N·m (3.0 kgf·m, 21 ft·lb)

Engine Oil Change

Remove the oil filler plug [A].

Engine Oil Change

Pour in the specified type and amount of oil.

Recommended Engine Oil

Type: API SG, SH, SJ, SL or SM with JASO MA, MA1 or MA2

Viscosity: SAE 10W-40

Capacity: 2.9 L (3.1 US qt) (when filter is not removed) 3.3 L (3.5 US qt) (when filter is removed) 3.7 L (3.9 US qt) (when engine is completely dry)

NOTE

Do not add any chemical additive to the oil.Oils fulfilling the above requirements are fully formulated and provide adequate lubrication for both the engine and the clutch.
Although 10W-40 engine oil is the recommended oil for most conditions, the oil viscosity may need to be changed to accommodate atmospheric conditions in your riding area.

Replace the O-ring of the oil filler plug with a new one.

Apply engine oil to the new O-ring.

Install the oil filler plug.

Torque - Oil Filler Plug: Hand-tighten

Check the oil level (see Oil Level Inspection in the Engine Lubrication System chapter).
