Kawasaki Ninja Service Manual: Front Fork Assembly

Kawasaki Ninja Service Manual / Suspension / Front Fork / Front Fork Assembly

Replace the following parts with new ones.

Slide Bushing

Guide Bushing

Oil Seal

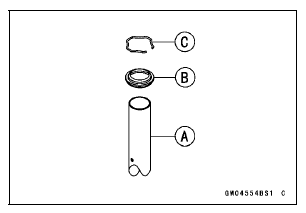

Install the following parts to the inner tube [A].

Dust Seal [B] Retaining Ring [C]

Front Fork Assembly

Apply grease to the oil seal lips.

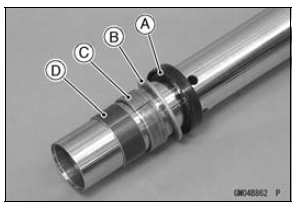

Install the oil seal [A] so that the stamp side faces lower side.
Install the washer [B] so that the chamfer side faces upper side.
Install the guide bushing [C] so that the slit of it is positioned perpendicular to the traveling direction.

Install the slide bushing [D] so that the slit of it is positioned perpendicular to the traveling direction.

Apply grease to the slide and guide bushings and oil seal.

Front Fork Assembly

Insert the inner tube to the outer tube.

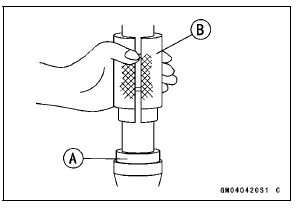

After installing the washer, install the oil seal [A] by using the fork oil seal driver [B].

Special Tool - Fork Oil Seal Driver, 43: 57001-1530
Install the retaining ring and dust seal.
Pour in the specified type of oil (see Front Fork Oil Change).
