Lubricate the points shown below, with either motor oil or regular grease, in accordance with the Periodic Maintenance Chart or whenever the vehicle has been operated under wet or rainy conditions.
Before lubricating each part, clean off any rusty spots with rust remover and wipe off any grease, oil, dirt, or grime.
NOTE
A few drops of oil are effective to keep bolts and nuts from rusting and sticking. This makes removal easier.
Badly rusted nuts, bolts, etc., should be replaced with new ones.
Apply motor oil to the following pivots

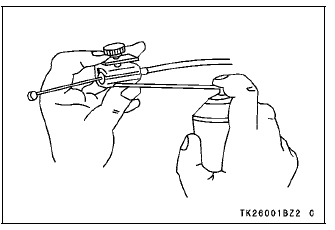

Lubricate the following cables with a pressure cable luber
Apply grease to the following points
(K): Should be serviced by an authorized Kawasaki dealer.
NOTE
After connecting the cables, adjust them.
FusesAir Intake Duct Assembly (Other than US, CA and CAL Models)
Install the seals [A] as shown in the figure.
Fit the projections [A] of the air intake valve to the hole [B]
of the air intake ducts.
Tighten:
Torque - Air Intake Duct Assembly Screws: 1.5 N·m (0.15
kgf·m, 13 in·lb)
Hang the shaft [A] to the air intake valve securely ...
Rear Master Cylinder Installation
Replace the washers that are on each side of hose fitting
with new ones.
Install the brake hose [A].
Touch the brake hose to the stopper [B] of the rear master
cylinder.
Tighten:
Torque - Brake Hose Banjo Bolt: 25 N·m (2.5 kgf·m, 18 ft·lb)
Install the master cylinder, the brack ...
Flap and Rear Fender Rear Removal
Remove:
Front and Rear Seat (see Front/Rear Seat Removal)
Seat Covers (see Seat Cover Removal)
Vehicle-down Sensor Connector [A]
Screws [B]
Clear the seat lock cable [C] from the seat lock unit [D].
Take off the seat lock unit and the bracket.
Remove:
Bolts [A] (Both Sides ...
