NOTICE

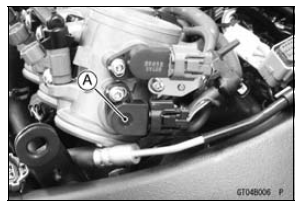

Do not remove or adjust the main throttle sensor [A] since it has been adjusted and set with precision at the factory.
Never drop the throttle body assy especially on a hard surface. Such a shock to themain throttle sensor can damage it.
Main Throttle Sensor Input Voltage InspectionValve Clearance Inspection
NOTE
Valve clearance must be checked and adjusted when
the engine is cold (at room temperature).
Remove:
Crankshaft Sensor Cover (see Crankshaft Sensor Removal
in the Electrical System chapter)
Cylinder Head Cover (see Cylinder Head Cover Removal
in the Engine Top End chapter)
Turn t ...
Exhaust Butterfly Valve Actuator Resistance Inspection
Turn the ignition switch to OFF.
Disconnect the exhaust butterfly valve actuator lead connector
(2 pins connector) [A].
Set the hand tester to the × 1 Ω range and connect it to
the exhaust butterfly valve actuator connector.
Special Tool - Hand Tester: 57001-1394
Measure ...
Throttle Grip and Cables
Free Play Inspection
Refer to the Throttle Control System Inspection in the Periodic
Maintenance chapter.
Free Play Adjustment
Refer to the Throttle Control System Inspection in the Periodic
Maintenance chapter.
Cable Installation
Install the throttle cables in accordance with the Cable,
...
