Kawasaki Ninja Service Manual: Special Tools

Kawasaki Ninja Service Manual / Wheels/Tires / Special Tools

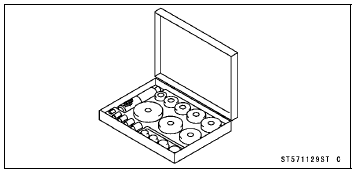

Bearing Driver Set: 57001-1129

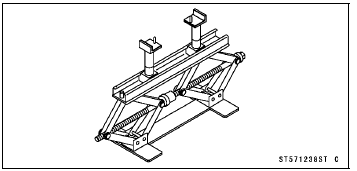

Jack: 57001-1238

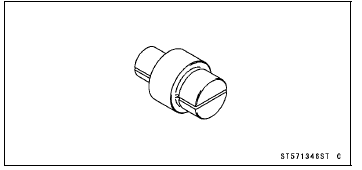

Bearing Remover Head, 25 × 28: 57001-1346

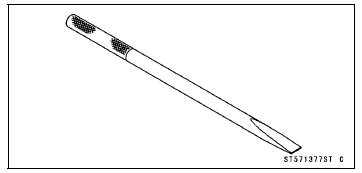

Bearing Remover Shaft, 13: 57001-1377

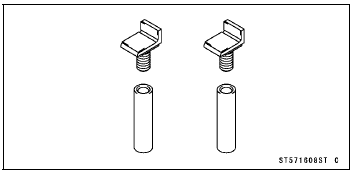

Jack Attachment:
57001-1608

Exploded View
AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque. HG: Apply high-temperature grease. R: Replacement Parts WL: Apply soap and water solution or ru ...
