Remove the left lower fairing (see Lower Fairing Removal in the Frame chapter).

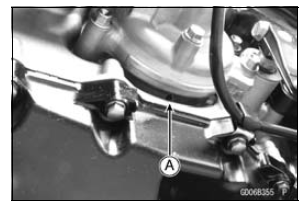

Check the drainage outlet passage [A] at the bottom of the water pump body for coolant leaks.

If the mechanical seal is damaged, the coolant leaks through the seal and drains through the passage. Replace the mechanical seal unit (seeWater Pump Housing Disassembly/Assembly).

Water Pump Inspection

Water Pump

Water Pump Removal Refer to the Oil Pump Removal in the Engine Lubrication System chapter. Water Pump Installation Refer to the Oil Pump Installation in the Engine Lubrication System chapter. ...

Water Pump Impeller Disassembly/Assembly

Remove the water pump impeller (see Oil Pump Removal in the Engine Lubrication System chapter). The sealing seat and rubber seal may be removed easily by hand. Apply coolant around the surf ...
