Kawasaki Ninja Service Manual: Subthrottle Valve Actuator Resistance Inspection

Kawasaki Ninja Service Manual / Self-Diagnosis System / Subthrottle Valve Actuator (Service Code 62) / Subthrottle Valve Actuator Resistance Inspection

Turn the ignition switch to OFF.

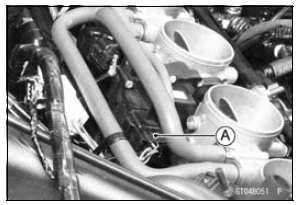

Disconnect the subthrottle valve actuator connector [A].

Subthrottle Valve Actuator Resistance Inspection

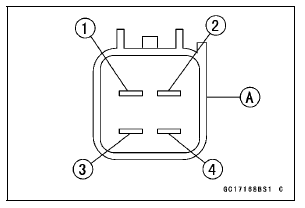

Connect a digital meter to the subthrottle valve actuator connector [A].
Measure the subthrottle valve actuator resistance.

Subthrottle Valve Actuator Resistance Connections: Y/BK lead [1] ←→ P/BL lead [2] G lead [3] ←→ BK/O lead [4] Standard: About 6.3 9.5 Ω

Subthrottle Valve Actuator Resistance Inspection

If the reading is out of the standard, replace the throttle body assy.

If the reading is within the standard, check the input voltage (see Subthrottle Valve Actuator Input Voltage Inspection).

Subthrottle Valve Actuator Inspection

NOTE Be sure the battery is fully charged. Remove the air cleaner housing (see Air Cleaner Housing Removal in the Fuel System (DFI) chapter). Turn the ignition switch to ON. Check to see th ...

Subthrottle Valve Actuator Input Voltage Inspection

NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. Disconnect the subthrottle valve actuator connector and connect the measuring adapter [A] between these connect ...
