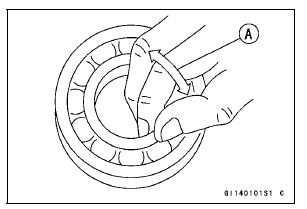

Since the coupling bearing is made to extremely close tolerances, the clearance can not normally be measured.
NOTE
It is not necessary to remove the coupling bearing for inspection. If the bearing is removed, it will need to be replaced with a new one.
If the bearing play, roughness or binding is found, replace the bearing.
Coupling Bearing Lubrication
Pack the bearing with high-temperature grease. Turn the bearing around by hand a few times to make sure the grease is distributed uniformly inside the bearing.
Coupling Bearing Installation
Coupling Damper InspectionWarning Symbols
: The red
warning indicator light
and the oil pressure warning symbol
( )
goes on whenever the oil pressure
is dangerously low or the ignition switch is in the “ON” position with the
engine not running, and go off when the
engine oil pressure is high enough. Refer
to the Mainten ...
Cylinder Head Cover Removal
Remove:
Air Suction Valves (see Air Suction Valve Removal)
Throttle Body Assy (see Throttle Body Assy Removal in
the Fuel System (DFI) chapter)
Stick Coils (see Stick Coil Removal in the Electrical System
chapter)
Remove the clamps [A].
Turn up the front side of the heat insulation ...
Piston Ring Thickness Inspection
Measure the piston ring thickness.
Use the micrometer to measure at several points around
the ring.
Piston Ring Thickness
Standard:
Top [A] 0.77 0.79 mm (0.0303
0.0311 in.)
Second [B] 0.78 0.79 mm
(0.0307 0.0311 in.)
Service Limit:
Top 0.70 mm (0.0276 in.)
Second 0.71 mm (0.0280 ...
