Kawasaki Ninja Service Manual: Headlight Bulb Replacement

Kawasaki Ninja Service Manual / Electrical System / Lighting System / Headlight Bulb Replacement

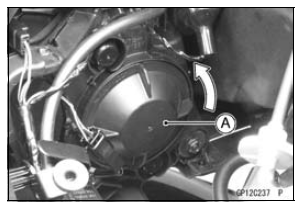

Turn the cover [A] counterclockwise, and remove it.

Headlight Bulb Replacement

Disconnect the headlight connector [A].
Open the clamp [B], and remove the bulb.

NOTICE

When handling the quartz-halogen bulb, never touch the glass portion with bare hands. Always use a clean cloth. Oil contamination from hands or dirty rags can reduce bulb life or cause the bulb to explode.

Headlight Bulb Replacement

NOTE

Clean off any contamination that inadvertently gets on the bulb with alcohol or soap and water solution.

Replace the headlight bulb with a new one.

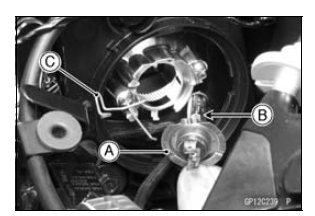

Install the new bulb [A].

Turn the tab [B] upward.

Install the clamp [C].

Headlight Bulb Replacement

Connect the headlight connector
Install the cover [A], and turn it clockwise until the mark [B] aligns to the projection [C].
After installation, adjust the headlight aim (see Headlight Aiming Inspection in the Periodic Maintenance chapter).

Another Bulb: Repeat the above steps.
