Interlock Operation Inspection


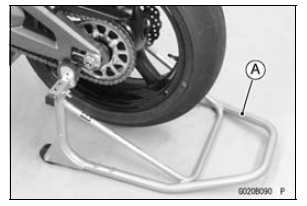

1st Check

Condition: Transmission Gear → 1st Position

Clutch Lever → Release

Sidestand → Down or Up

If the engine is start, inspect the starter lockout switch, gear position switch and relay box.

2nd Check

Condition: Transmission Gear → 1st Position

Clutch Lever → Pulled in

Sidestand → Up

Turn the ignition switch to ON and push the starter button.

Then the starter motor should turn when the starter system circuit is normality.

If the starter motor is not turn, inspect the starter lockout switch, sidestand switch, relay box and starter relay.

3rd Check

Condition: Transmission Gear → 1st Position

Clutch Lever → Release

Sidestand → Up

If the engine may not be stopped, inspect the gear position switch, sidestand switch and relay box.

If their parts are normality, replace the ECU.

Spark Plug Condition Inspection
Remove the spark plugs (see Spark Plug Replacement in the Periodic Maintenance chapter). Visually inspect the spark plugs. If the spark plug center electrode [A] and/or side electrode [B] a ...

IC Igniter Inspection
The IC igniter is built in the ECU [A]. Refer to the following items. Interlock Operation Inspection (see Interlock Operation Inspection) Ignition System Troubleshooting (see Ignition Syst ...
