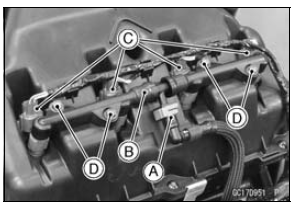

Nozzle Assy Removal


Nozzle Assy
...

Nozzle Assy Installation
Replace the dust seals [A] with new ones. Apply engine oil to the new dust seals, and install them. Install the nozzle assy securely. Push the four mounting positions of the injectors. Set ...
