Kawasaki Ninja Service Manual: Air Cleaner Housing Assembly

Kawasaki Ninja Service Manual / Fuel System (DFI) / Air Cleaner / Air Cleaner Housing Assembly

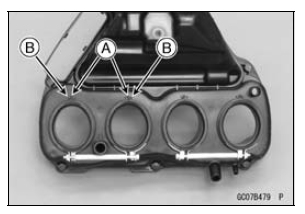

Fit the projections [A] of the duct into the slits [B] on the air cleaner housing.

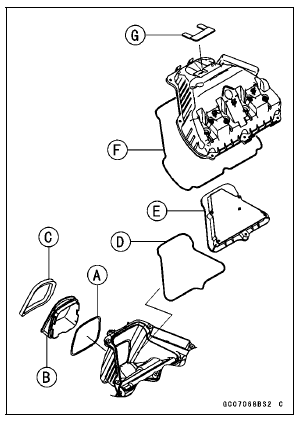

Air Cleaner Housing Assembly


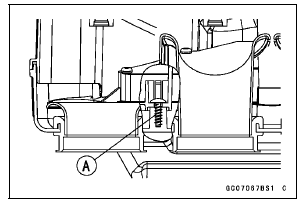

Torque - Air Cleaner Housing Duct Screws: 1.1 N·m (0.11 kgf·m, 10 in·lb)

Air Cleaner Housing Assembly


Air Cleaner Housing Assembly


Air Cleaner Housing Disassembly
Remove: Air Cleaner Housing (see Air Cleaner Housing Removal) Intake Air Temperature Sensor (see Intake Air Temperature Sensor Removal in the Self-Diagnosis System chapter) Nozzle Assy (s ...
