Kawasaki Ninja Owners Manual: Average Mileage

Kawasaki Ninja Owners Manual / General information / Meter instruments / Multifunction Meter / Average Mileage

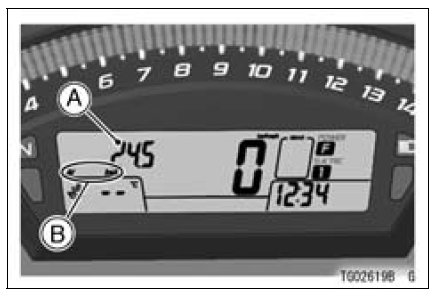

This display mode shows the average mileage by numerical value counted from the start of measuring to present time.

A. Average Mileage

B. “AV km/L”

While the average mileage is displayed, push the lower button and hold it in until the average mileage values resets to “– –. –”.

NOTE

The data is maintained by back up power if the ignition switch is turned “OFF”.
The display unit modes can be changed, refer to the “Unit Setting” item in this section
When the battery is disconnected, the average mileage resets to “– –.–”.
After resetting the average mileage, the numerical value is not displayed until 5 mL (0.2 US oz.) of fuel has been used and 100 m (328 ft) has been traveled.
