Kawasaki Ninja Service Manual: Air Cleaner Housing Removal

Kawasaki Ninja Service Manual / Fuel System (DFI) / Air Cleaner / Air Cleaner Housing Removal

Remove the fuel tank (see Fuel Tank Removal).
Disconnect the secondary fuel hose [A] from the delivery pipe of the nozzle assy [B] (see Fuel Hose Replacement in the Periodic Maintenance chapter).
Disconnect the secondary fuel injector connectors [C].
Free the lead from the grooves [D].

Air Cleaner Housing Removal

Remove the bolts [A].
For ZX1000JD/KD, remove the ESD ECU from the air cleaner housing.

Air Cleaner Housing Removal

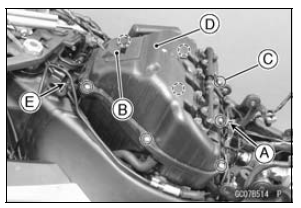

Remove: Clamp [A] Connector [B] Screws [C] Upper Air Cleaner Housing [D] Bolt [E]

Air Cleaner Housing Removal

Remove: ECU (see ECU Removal) Air Cleaner Element (see Air Cleaner Element Replacement in the Periodic Maintenance chapter)
Disconnect: Air Cleaner Drain Hose [A] Breather Hose [B]

Air Cleaner Housing Removal

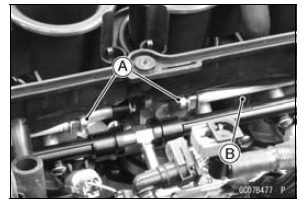

Loosen the air cleaner housing clamp bolts [A].
Disconnect the hose [B].

Air Cleaner Housing Removal

Separate the air switching valve hose [A] from the lower air cleaner housing [B].

Air Cleaner Housing Removal

Air Cleaner Oil Draining

A drain hose is connected to the bottom of the air cleaner to drain water or oil accumulated in the cleaner part. Visually check the drain hose [A] if the water or oil accumulates. If any wate ...

Air Cleaner Housing Installation

For ZX1000JD/KD, be sure to install the pad [A]. Install the clamp bolt heads [A] inside as shown in the figure. Install the air cleaner housing on the throttle body assy. Push in ...
