Clutch Removal


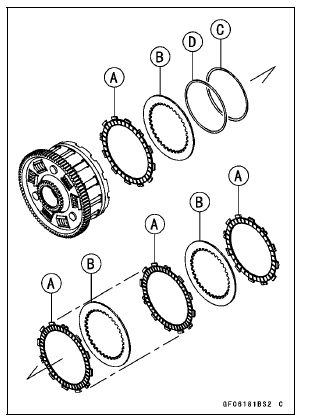

Clutch Removal


Clutch Removal


Use the clutch holder with sharpened hook nose by grinding.

Special Tool - Clutch Holder: 57001-1243

Grind the hook nose by 0.5 mm (0.02 in.) as shown in the figure.

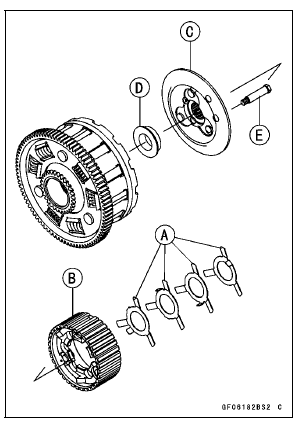

Clutch Removal


Clutch Removal

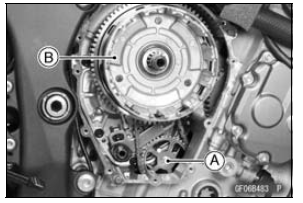

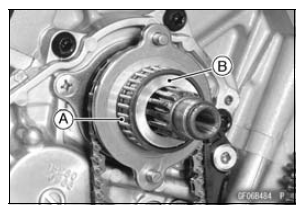

If the oil pump drive gear is to be disassembled, loosen the oil pump drive gear bolt [A] (Left-hand Threads).

Clutch Removal


Clutch Removal
