NOTICE

Never drop the idle speed control valve actuator especially on a hard surface. Such a shock to the actuator can damage it.

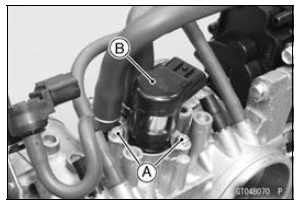

Remove: Throttle Body Assy (see Throttle Body Assy Removal in the Fuel System (DFI) chapter) Idle Speed Control Valve Actuator Retainer Screws [A] Idle Speed Control Valve Actuator [B] with Retainer

Idle Speed Control Valve Actuator Removal

Idle Speed Control Valve Actuator (Service Code 1C)

...

Idle Speed Control Valve Actuator Installation

Replace the O-ring [A] with a new one. Apply engine oil to the new O-ring. Install the idle speed control valve [A] as shown in the figure. 10° [B] Tighten: Torque - Idle Spe ...
