Kawasaki Ninja Service Manual: Sidestand Installation

Sidestand Removal

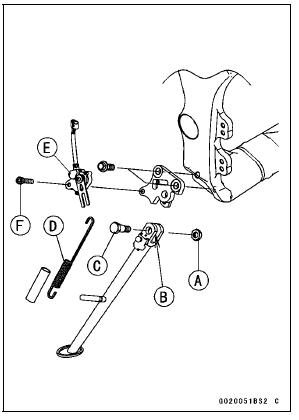

Raise the rear wheel off the ground with the stand [A]. Remove: Sidestand Switch Bolt [A] Sidestand Switch [B] Remove: Spring [A] Sidestand Nut [B] Sidestand Bolt [C] ...

Footpeg

Footpeg Height Adjustment The front footpeg can be adjusted within 2 positions in height to suit the rider’s preference. Footpeg [A] Bolts [B] Bolt Holes [C] Footpeg Position 1 [D] ...

Other materials:

Vehicle-down Sensor Output Voltage Inspection
Remove the vehicle-down sensor. Connect the measuring adapter [A] to the vehicle-down sensor connectors as shown in the figure. Special Tool - Measuring Adapter: 57001-1700 Main Harness [B] Vehicle-down Sensor [C] Connect a digital meter [D] to the measuring adapter leads. V ...

Brake Pedal Installation
Apply grease to the brake pedal pivot shaft [A]. Install: Washers [B] Brake Pedal [C] Apply a non-permanent locking agent to the threads of the brake pedal mounting bolt [D], and tighten it. Torque - Brake Pedal Mounting Bolt: 8.8 N·m (0.90 kgf·m, 78 in·lb) Install the re ...

Passenger’s Seat Installation
Insert the tab on the rear of the passenger’s seat into the slot in the frame. Insert the projections at the front of the passenger’s seat into the holes on the frame. Push down the front part of the passenger’s seat until the lock clicks. A. Passenger’s Seat B. Proj ...
