Kawasaki Ninja Service Manual: Special Tools and Sealant

Kawasaki Ninja Service Manual / Engine Lubrication System / Special Tools and Sealant

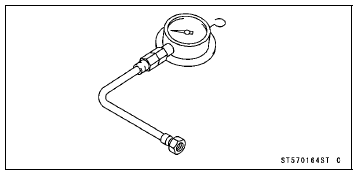

Oil Pressure Gauge, 10 kgf/cm²: 57001-164

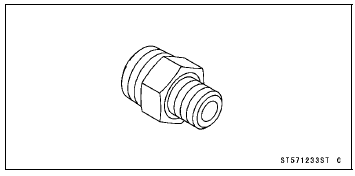

Oil Pressure Gauge Adapter, PT3/8: 57001-1233

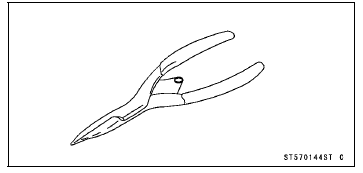

Outside Circlip Pliers: 57001-144

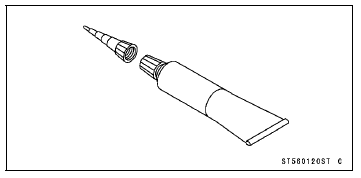

Liquid Gasket, TB1211: 56019-120


Engine Oil Flow Chart
1. Oil Screen 2. Oil Pump 3. Oil Pressure Relief Valve 4. Oil Filter 5. Oil Pipe 6. Oil Cooler 7. Balancer Oil Passage 8. Main Oil Passage 9. Crankshaft Oil Passage 10. Oil Pressure Switc ...

Engine Oil and Oil Filter
WARNINGVehicle operation with insufficient, deteriorated, or contaminated engine oil will cause accelerated wear and may result in engine seizure, accident, and injury. Check the o ...
