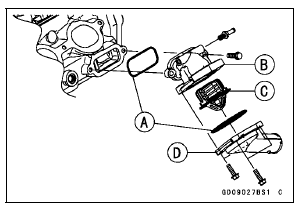

Replace the O-rings [A] with new ones, and apply grease to them.
Assemble: O-rings Thermostat Housing [B] Thermostat [C] Thermostat Cap [D]

Thermostat Installation

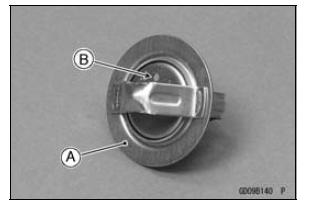

Install the thermostat [A] in the housing so that the air bleeder hole [B] is on top.

Tighten: Torque - Thermostat Cap Bolts: 5.9 N·m (0.60 kgf·m, 52 in·lb)
Install the thermostat assembly to the cylinder head.
Tighten: Torque - Thermostat Housing Mounting Bolts: 9.8 N·m (1.0 kgf·m, 87 in·lb)
Install the removed parts (see appropriate chapters).

Thermostat Installation

Thermostat Removal

Remove: Fuel Tank (see Fuel Tank Removal in the Fuel System (DFI) chapter) Air Cleaner Housing (see Air Cleaner Housing Removal in the Fuel System (DFI) chapter) Throttle Body Assy (see T ...

Thermostat Inspection

Remove the thermostat (see Thermostat Removal). Inspect the thermostat valve [A] at room temperature. If the valve is open, replace the thermostat with a new one. To check valve openi ...
