Kawasaki Ninja Service Manual: Thermostat Inspection

Kawasaki Ninja Service Manual / Cooling System / Thermostat / Thermostat Inspection

Remove the thermostat (see Thermostat Removal).

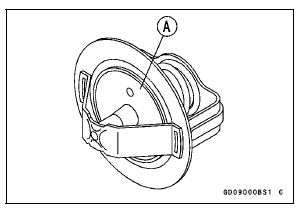

Inspect the thermostat valve [A] at room temperature.

If the valve is open, replace the thermostat with a new one.

Thermostat Inspection

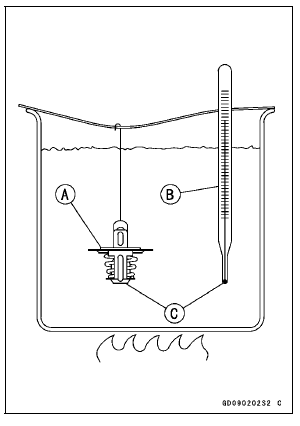

To check valve opening temperature, suspend the thermostat [A] in a container of water and raise the temperature of the water.

The thermostat must be completely submerged and must not touch the container sides or bottom. Suspend an accurate thermometer [B] in the water so that the heat sensitive portions [C] are located in almost the same depth.

It must not touch the container, either.

If the measurement is out of the specified range, replace the thermostat with a new one.

Thermostat Valve Opening Temperature 58 62°C (136
144°F)

Thermostat Inspection

Thermostat Installation

Replace the O-rings [A] with new ones, and apply grease to them. Assemble: O-rings Thermostat Housing [B] Thermostat [C] Thermostat Cap [D] Install the thermostat [A] in the hous ...

Hoses and Pipes

Hose Installation Install the hoses and pipes, being careful to follow bending direction. Avoid sharp bending, kinking, flattening or twisting. Run the hoses (see Cable, Wire, and Hose Routi ...
