The trip meter has two meters which distinguished between the “TRIP A” and “TRIP B”. The trip meter shows the distance in kilometers or miles traveled since it was last reset to zero.

TRIP A: 0.0 9999.9

TRIP B: 0.0 9999.9

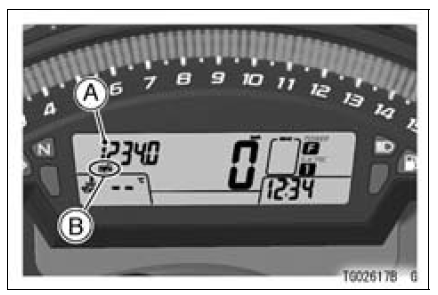

A. Trip Meter

B. “TRIP A”

To reset the trip meter:

Push the upper button to select the trip meter A or B.
Push the lower button and hold it in.

NOTE

The data is maintained by the back up power if the ignition switch is turned “OFF”.
When the trip meter reaches 9999.9 while riding, the meter resets to 0.0 and continues counting.
When the battery is disconnected, the meter display resets to 0.0.
The display unit modes can be changed, refer to the “Unit Setting” item in this section.
