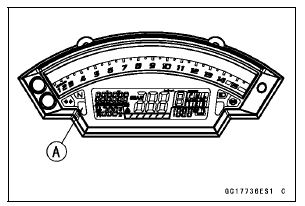

The warning indicator light (LED) [A] is used for the FI indicator, immobilizer indicator (immobilizer equipped models), water temperature warning indicator and oil pressure warning indicator.

Troubleshooting the DFI System


DFI Servicing Precautions
There are a number of important precautions that should be followed servicing the DFI system. This DFI system is designed to be used with a 12 V sealed battery as its power source. Do not use a ...

Outline
When a problem occurs with DFI system, the warning indicator light (LED) [A] and FI warning symbol [B] goes on to alert the rider. In addition, the condition of the problem is stored in the memory ...

Other materials:

Service Code Reading
The service code(s) is displayed on the LCD by the number of two digits. NOTE The service code of the KIBS and ABS adds “b” at the left side of the code. The service code of the ESD adds “E” at the left side of the code. When there are a number of problems, all the serv ...

Throttle Control System Inspection
Check the throttle grip free play [A]. If the free play is incorrect, adjust the throttle cables. Throttle Grip Free Play Standard: 2 3 mm (0.08 0.12 in.) Check that the throttle grip [B] moves smoothly from full open to close, and the throttle closes quickly and completely by the ...

Exhaust Butterfly Valve Actuator Sensor Resistance Inspection
Turn the ignition switch to OFF. Disconnect the exhaust butterfly valve actuator sensor connector (3 pins connector) [A] (see Exhaust Butterfly Valve Actuator Sensor Input Voltage Inspection). Connect a digital meter [B] to the exhaust butterfly valve actuator sensor connector. Measur ...
