Kawasaki Ninja Service Manual: Air Cleaner Housing Disassembly

Kawasaki Ninja Service Manual / Fuel System (DFI) / Air Cleaner / Air Cleaner Housing Disassembly

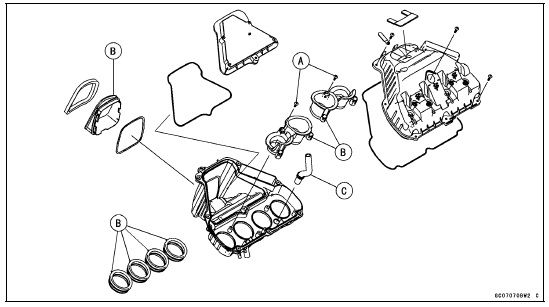

Remove: Air Cleaner Housing (see Air Cleaner Housing Removal) Intake Air Temperature Sensor (see Intake Air Temperature Sensor Removal in the Self-Diagnosis System chapter) Nozzle Assy (see Nozzle Assy Removal) Screws [A] Ducts [B] Hose [C]

Air Cleaner Housing Disassembly

Air Cleaner Housing Installation

For ZX1000JD/KD, be sure to install the pad [A]. Install the clamp bolt heads [A] inside as shown in the figure. Install the air cleaner housing on the throttle body assy. Push in ...

Air Cleaner Housing Assembly

Install the ducts to the air cleaner housing. Fit the projections [A] of the duct into the slits [B] on the air cleaner housing. Tighten the screws [A]. Torque - Air Cleaner Housing ...
