Position the crankshaft at #2, 3 positions TDC or at #1, 4 positions TDC.
Install the balancer assembly as follows.

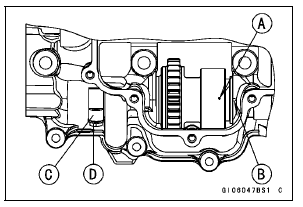

Align the punch mark [A] on the weight and the projection [B] on the crankcase.

Engage the balancer gear and the crankshaft gear.

Insert the balancer shaft until it is bottomed.

Balancer Installation

Replace the balancer shaft oil seal with a new one.
Apply grease to the oil seal lips.
Install the oil seal so that its surface is flush with the end of hole.
Install: Balancer Shaft Clamp Lever [C]
Tighten: Torque - Balancer Shaft Clamp Bolt [D]: 9.8 N·m (1.0 kgf·m, 87 in·lb)

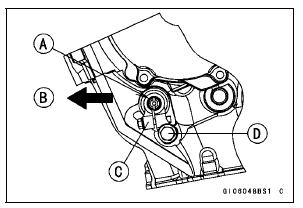

Turn the mark [A] on the balancer shaft to the engine forward [B].
Check that the lever [C] is in contact with the crankcase.
Tighten: Torque - Balancer Shaft Clamp Lever Bolt [D]: 25 N·m (2.5 kgf·m, 18 ft·lb)

Balancer Installation

Balancer Assemble

Apply molybdenum disulfide oil solution to the ribs of the balancer [A]. Apply molybdenum disulfide oil solution to the ribs of the balancer gear [A]. Check that the rubber dampers ...

Balancer Adjustment

Remove the left lower fairing (see Lower Fairing Removal in the Frame chapter). Start the engine and warm it up thoroughly. Adjust the balancer gear backlash with the engine idling. The a ...
