If there are obstructions to air flow, remove them.

If the corrugated fins [A] are deformed, carefully straighten them.

If the air passages of the radiator core are blocked more than 20% by unremovable obstructions or irreparably deformed fins, replace the radiator with a new one.

Radiator Inspection


NOTICE

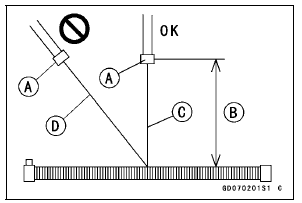

When cleaning the radiator with steam cleaner, be careful of the following to prevent radiator damage: Keep the steam gun [A] away more than 0.5 m (1.6 ft) [B] from the radiator core.

Hold the steam gun perpendicular [C] (not oblique [D]) to the core surface.

Run the steam gun, following the core fin direction.

Radiator Inspection


Radiator and Radiator Fan Installation
If the radiator bracket [A] was removed, install it. Install the radiator fan to the radiator Tighten the radiator fan mounting bolts. When installing the pad [B], install it so that the upper ...

Radiator Cap Inspection
Remove: Radiator Cap (see Coolant Change in the Periodic Maintenance chapter) Check the condition of the bottom [A] and top [B] valve seals and valve spring [C]. If any one of them shows ...
