Kawasaki Ninja Service Manual: Center Inner Fairing Installation

Kawasaki Ninja Service Manual / Frame / Fairings / Center Inner Fairing Installation

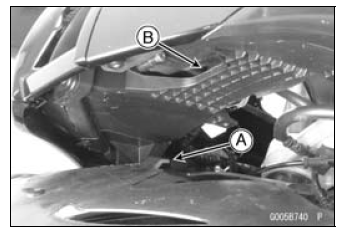

Insert the hook portion [A] of the center inner fairing into the slot [B].

Center Inner Fairing Installation


Center Inner Fairing Removal
Remove: Quick Rivets [A] (Both Sides) Screw [B] Bring the center inner fairing [C] backward to clear the front edge while lift up the upper fairing edges lightly. ...
