Kawasaki Ninja Service Manual: Cylinder Head Cover Removal

Cylinder Head Cover

...

Cylinder Head Cover Installation

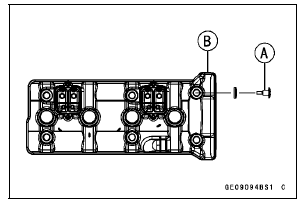

Replace the cylinder head cover gasket [A] with a new one Using a high flash-point solvent, clean off any oil or dirt that may be on the silicone sealant coating area. Dry them with a clean ...

Other materials:

Stick Coil Inspection
Remove the stick coils (see Stick Coil Removal). Measure the primary winding resistance [A] as follows. Connect the hand tester between the coil terminals. Set the tester to the × 1 Ω range, and read the tester. Measure the secondary winding resistance [B] as follows. Conn ...

Steering Play Inspection
Remove the lower fairings (see Lower Fairing Removal in the Frame chapter). Raise the front wheel off the ground with the jack. Special Tools - Jack: 57001-1238 Jack Attachment: 57001-1608 With the front wheel pointing straight ahead, alternately tap each end of the handlebar. The f ...

Terminal Numbers of ECU Connectors
1. Subthrottle Valve Actuator: Y/BK 2. Subthrottle Valve Actuator: BK/O 3. Unused 4. Front Wheel Rotation Sensor Signal: G/Y 5. Unused 6. Starter Lockout Switch: R/G 7. Gear Position Switch: G/R 8. Crankshaft Sensor (–): BK 9. Power Supply to Sensors: BL 10. Unused 11. Intake Air Pre ...
