Kawasaki Ninja Service Manual: Gear Dog and Gear Dog Hole Damage Inspection

Kawasaki Ninja Service Manual / Crankshaft/Transmission / Transmission / Gear Dog and Gear Dog Hole Damage Inspection

Replace any damaged gears or gears with excessively worn dogs or dog holes.

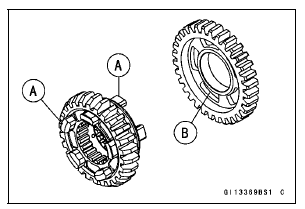

Gear Dog and Gear Dog Hole Damage Inspection


Shift Fork Guide Pin/Drum Groove Wear Inspection
Measure the diameter of each shift fork guide pin [A], and measure the width [B] of each shift drum groove. If the guide pin on any shift fork is less than the service limit, the fork must be ...

External Shift Mechanism
...
