Intake Air Temperature Sensor Resistance Inspection


NOTE

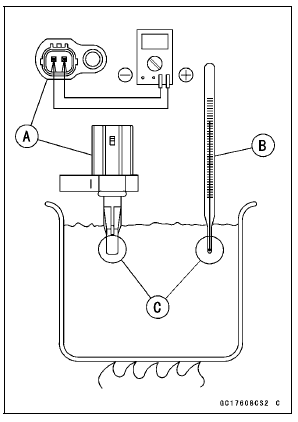

The sensor and thermometer must not touch the container side or bottom.

Intake Air Temperature Sensor Resistance Standard: 5.4 6.6 kΩ at 0°C
(32°F) 0.29 0.39 kΩ at 80°C (176°F)


Intake Air Temperature Sensor Circuit

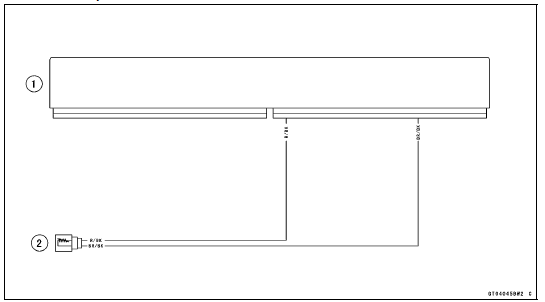

Intake Air Temperature Sensor Circuit


1. ECU

2. Intake Air Temperature Sensor

Intake Air Temperature Sensor Output Voltage Inspection
NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. Remove the fuel tank (see Fuel Tank Removal in the Fuel System (DFI) chapter). Disconnect the intake air temperat ...
