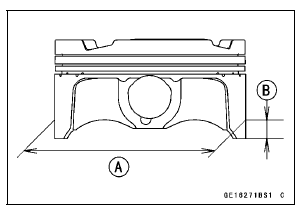

Measure the outside diameter [A] of each piston 5 mm (0.20 in.) [B] up from the bottom of the piston at a right angle to the direction of the piston pin.

If the measurement is under service limit, replace the piston.

Piston Wear Inspection

Piston Diameter

Standard: 75.959 75.974 mm
(2.9905 2.9911 in.)
Service Limit: 75.81 mm (2.985 in.)

Cylinder (Upper Crankcase) Wear Inspection

Split the crankcase (see Crankcase Splitting). Remove the pistons (see Piston Removal). Assemble the cylinder (upper crankcase) [A], the cylinder head [B] and the cylinder head gasket [C]. ...

Piston Ring, Piston Ring Groove Wear Inspection

Check for uneven groove wear by inspecting the ring seating. The rings should fit perfectly parallel to groove surfaces. If not, replace the piston and all the piston rings. With the pist ...
