Kawasaki Ninja Service Manual: Shift Pedal Removal

Kawasaki Ninja Service Manual / Crankshaft/Transmission / External Shift Mechanism / Shift Pedal Removal

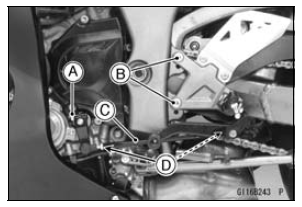

If the tie-rod [C] is to be removed from the shift pedal and the shift lever, loosen the tie-rod locknuts [D].

The front tie-rod locknut is left-hand thread.

Shift Pedal Removal


Shift Pedal Removal


External Shift Mechanism
...

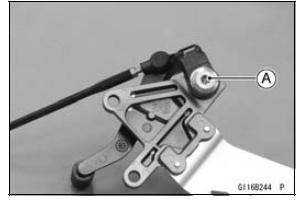

Shift Pedal Installation
Install the rubber damper to the shift pedal. Turn the chamfered side to inside. Assemble: Shift Lever [A] and Locknut [B] (Left-hand Thread) Shift Pedal [C] and Locknut [D] Tie-Rod [E ...
