Kawasaki Ninja Service Manual: Starter Motor Assembly

Kawasaki Ninja Service Manual / Electrical System / Electric Starter System / Starter Motor Assembly

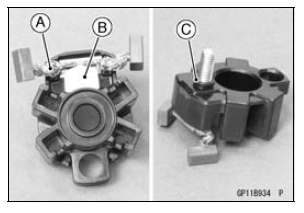

Install the positive brush assy [A] and the starter motor terminal [B] as shown in the figure.
Replace the O-ring [C] with a new one, and install it.

Starter Motor Assembly

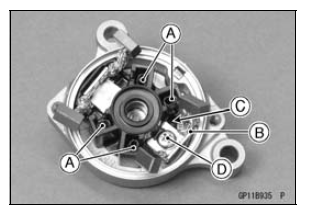

Install: Brush Springs [A] Negative Brush Assy [B]

Turn the stopper side [C] to inside.

Tighten: Torque - Brush Holder Screw: 3.8 N·m (0.39 kgf·m, 34 in·lb)
Install the brushes onto the brush springs.

Starter Motor Assembly

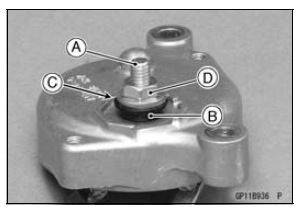

Install the following parts to the starter motor terminal [A].
Collar [B] Washer [C] Starter Motor Terminal Locknut [D]

Turn the flange of the collar to the locknut as shown in the figure.

Tighten: Torque - Starter Motor Terminal Locknut: 11 N·m (1.1 kgf·m, 97 in·lb)

Starter Motor Assembly

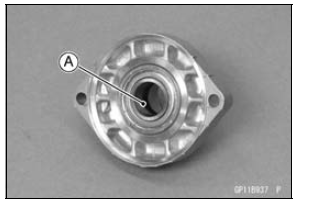

Apply thin coat of grease to the oil seal [A].

Starter Motor Assembly

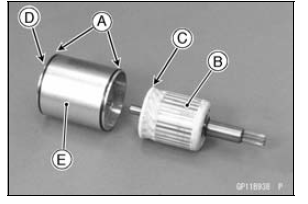

Replace the O-rings [A] with new ones.
Insert the armature [B] so that commutator side [C] faces hollow side [D] of the yoke [E].

Starter Motor Assembly

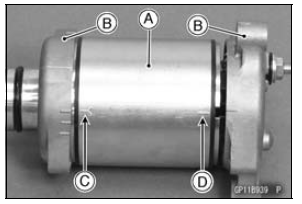

Assemble the yoke [A] and the end covers [B] as shown in the figure.

“Y” Mark [C] ”I” Mark [D]

Starter Motor Assembly

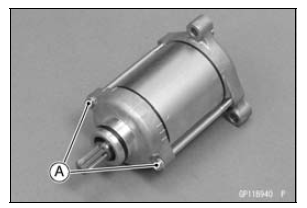

Tighten: Torque - Starter Motor Through Bolts [A]: 5.0 N·m (0.51 kgf·m, 44 in·lb)

Starter Motor Assembly

Starter Motor Disassembly

Remove the starter motor (see Starter Motor Removal). Take off the starter motor through bolts [A] and remove the both end covers [B]. Pull out the armature [A] out of the yoke [B]. ...

Brush Inspection

Measure the length of each brush [A]. If any is worn down to the service limit, replace the brush assy. Starter Motor Brush Length [B] Standard: 12.05 mm (0.4744 in.) Service Limit: 6.55 mm ...
