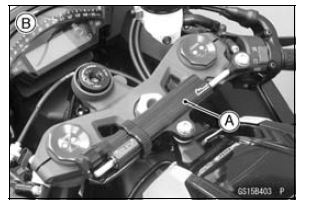

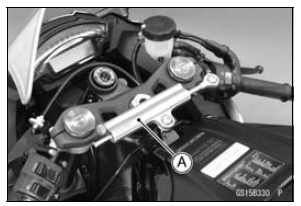

Kawasaki Ninja Service Manual: Steering Damper Oil Leak Inspection

Steering Stem Bearing Lubrication

Remove the steering stem (see Stem, Stem Bearing Removal in the Steering chapter). Using a high flash-point solvent, wash the upper and lower ball bearings [A] in the cages. Wipe the upper ...

Electrical System

...

Other materials:

Seat Cover Removal
Remove: Rear Seat (see Rear Seat Removal) Remove the bolts [A]. Remove the upper seat cover backward [B] to clear the hook portions. Remove: Front Seat (see Front Seat Removal) Quick Rivets [A] Bolts [B] Seat Covers [C] ...

Engine Oil Flow Chart
1. Oil Screen 2. Oil Pump 3. Oil Pressure Relief Valve 4. Oil Filter 5. Oil Pipe 6. Oil Cooler 7. Balancer Oil Passage 8. Main Oil Passage 9. Crankshaft Oil Passage 10. Oil Pressure Switch 11. Camshaft Oil Passages 12. Drive Shaft Oil Passage 13. Output Shaft Oil Passage 14. Starter ...

Piston Wear Inspection
Measure the outside diameter [A] of each piston 5 mm (0.20 in.) [B] up from the bottom of the piston at a right angle to the direction of the piston pin. If the measurement is under service limit, replace the piston. Piston Diameter Standard: 75.959 75.974 mm (2.9905 2.9911 in.) ...
