Kawasaki Ninja Service Manual: For Secondary Fuel Injectors

Kawasaki Ninja Service Manual / Fuel System (DFI) / Fuel Injectors / Fuel Injector Resistance Inspection / For Secondary Fuel Injectors

Remove the fuel tank (see Fuel Tank Removal).

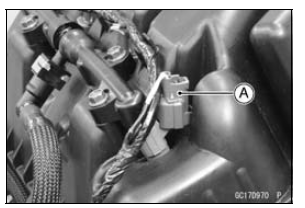

Disconnect the secondary fuel injector connector [A].

For Secondary Fuel Injectors

Connect a digitalmeter to the terminals in each secondary fuel injector [A].
Measure the secondary fuel injector resistance.

For Secondary Fuel Injectors

Secondary Fuel Injector Resistance Standard: About 11.7 ∼ 12.3 Ω at 20°C (68°F)

If the reading is out of the standard, replace the secondary fuel injector.

If the reading is within the standard, check the power source voltage (see Fuel Injector Power Source Voltage Inspection).

For Primary Fuel Injectors

Remove the air cleaner housing (see Air Cleaner Housing Removal). Disconnect the primary fuel injector connector [A]. Connect a digital meter to the terminals in each primary fuel i ...

Fuel Injector Power Source Voltage Inspection

NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. ...
