Kawasaki Ninja Service Manual: KIBS Hydraulic Unit Inspection

Kawasaki Ninja Service Manual / Brakes / KIBS (Equipped Models) / KIBS Hydraulic Unit Inspection

Remove the KIBS hydraulic unit (see KIBS Hydraulic Unit Removal).

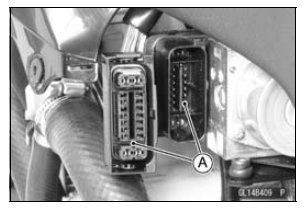

Visually inspect the connector terminals [A].

Replace the KIBS hydraulic unit or main harness if either of the terminals are cracked, bent, or otherwise damaged.

If the KIBS hydraulic unit connector is clogged with mud or dust, blow it off with compressed air.

Visually inspect the KIBS hydraulic unit.

Replace the KIBS hydraulic unit if any of them are cracked, or otherwise damaged.

KIBS Hydraulic Unit Inspection

KIBS Hydraulic Unit Installation

NOTICE Brake fluid quickly ruins painted plastic surfaces; any spilled fluid should be completely washed away immediately. Install the KIBS hydraulic unit together with the bracket. Before in ...

Front Wheel Rotation Sensor Removal

NOTICE The wheel rotation sensor should be handled carefully, never struck sharply, as with a hammer, or allowed to fall on a hard surface since the wheel rotation sensor is precision made. Be car ...
