Sealant - Liquid Gasket, TB1211: 56019-120
Torque - Oil Pressure Switch: 15 N·m (1.5 kgf·m, 11 ft·lb)

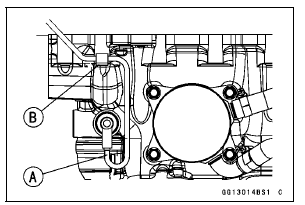

Clamp [B]
Oil Pressure Switch RemovalInterlock Operation Inspection
Raise the rear wheel off the ground with the stand [A].
1st Check
Start the engine to the following conditions
Condition:
Transmission Gear → 1st Position
Clutch Lever → Release
Sidestand → Down or Up
Turn the ignition switch to ON and push the starter butto ...
Shift Fork Guide Pin/Drum Groove Wear Inspection
Measure the diameter of each shift fork guide pin [A], and
measure the width [B] of each shift drum groove.
If the guide pin on any shift fork is less than the service
limit, the fork must be replaced.
Shift Fork Guide Pin Diameter
Standard: 6.9 7.0 mm (0.272
0.276 in.)
Service Limit: ...
Gear Position Switch Installation
Securely place the springs [A] and pins [B] into the holes
[C] of the shift drum.
Apply grease to the new O-ring [D].
Install the gear position switch [E].
Apply a non-permanent locking agent to the threads of
the gear position switch screws [F].
Tighten:
Torque - Gear Position Swit ...
