Kawasaki Ninja Service Manual: Oil Pump Installation

Kawasaki Ninja Service Manual / Engine Lubrication System / Oil Pump / Oil Pump Installation

To prevent dropping, apply grease to the pin.

Fit the slot [E] onto the projection [F].

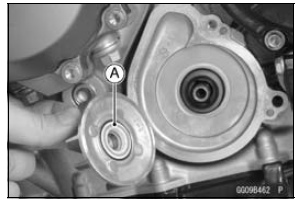

Oil Pump Installation


Oil Pump Installation


Oil Pump Installation


Torque - Water Pump Cover Bolts: 9.8 N·m (1.0 kgf·m, 87 in·lb)

Insert the bolt (L = 25 mm, 1.0 in.) to the upper bolt hole.

Torque - Water Pipe Mounting Bolt: 9.8 N·m (1.0 kgf·m, 87 in·lb) Water Hose Clamp Screws: 3.0 N·m (0.31 kgf·m, 27 in·lb)
